24 cavity 165mm length 2.5g spoon mould cutlery mold cutler-Top plastic mould making manufacture in China.

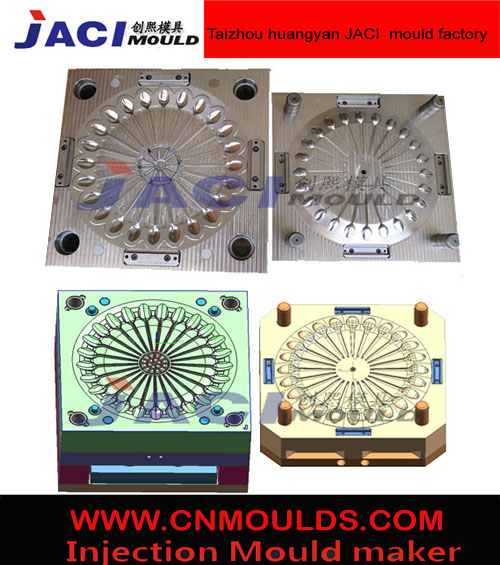

24 cavity 165mm length 2.5g spoon mould/cutlery mold/plastic


JACI mould is professional tableware mould manufacture in China, such as spoon mould ,knife mould, fork mould. we can make 12-32cavity tableware mould with smoothness verge. Excellent quality with best price. Good cooling system , High speed cycle time. Accurate products weight controlling for each cavity, we have made 30-40 sets for knife mould, fork mould and spoon mould per year.

Specification:
1. core  /cavity  mould material: Din1.2344
 2. runner system:1tip hot runner+ submarine gate
 3.ejection:ejector pin
 4.cycle time:6 seconds
 5. injection machine weight: 250T
 6. mould size:490*490*400mm.
 7. cavity & core hardness of steel : nitrured to 50 HRC
  8. lead time : About 35days for the first mould testing
 9. mould life:more than 3000,000 shots
10.mirror polishing
11.tooling machine:high speed milling
12. mold base: LKM standard , HASCO,JLS,DEM etc
