Tai Zhou Huangyan jaci Mould Factory

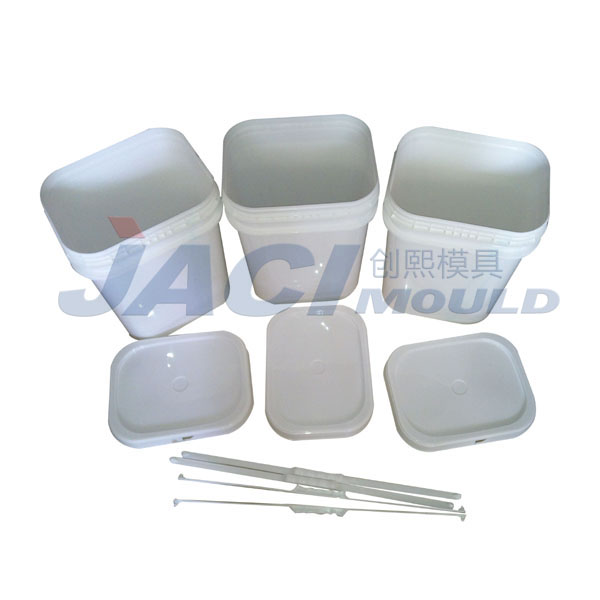

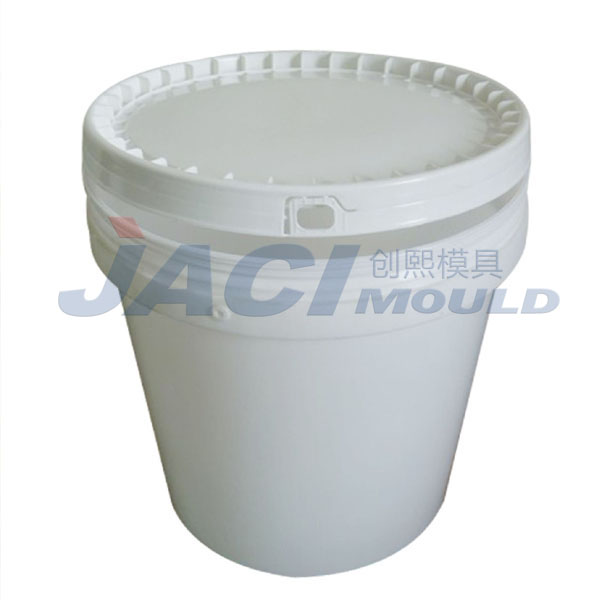

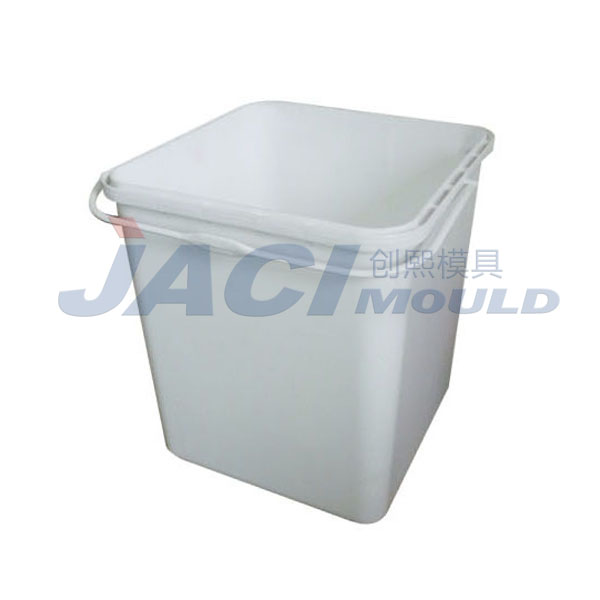

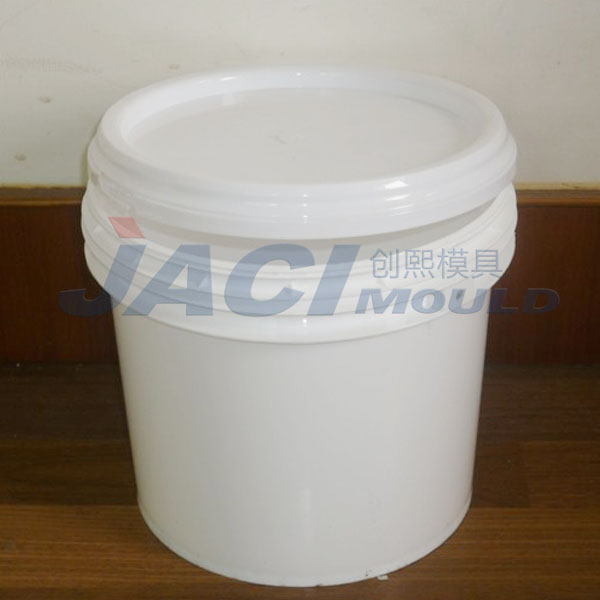

JACI MOULD for painting made of PP or HDPE, with/without monolithic handle of different colour and material, suitable for IML process (electrostatic and not).
-Moldmax material application in mould core&cavity

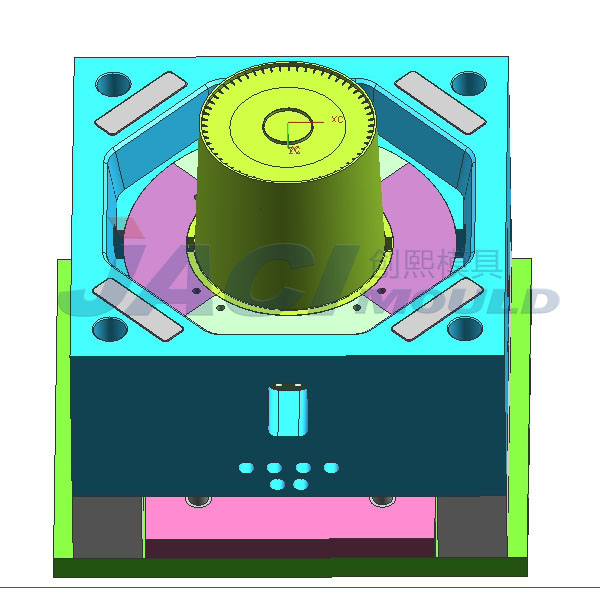

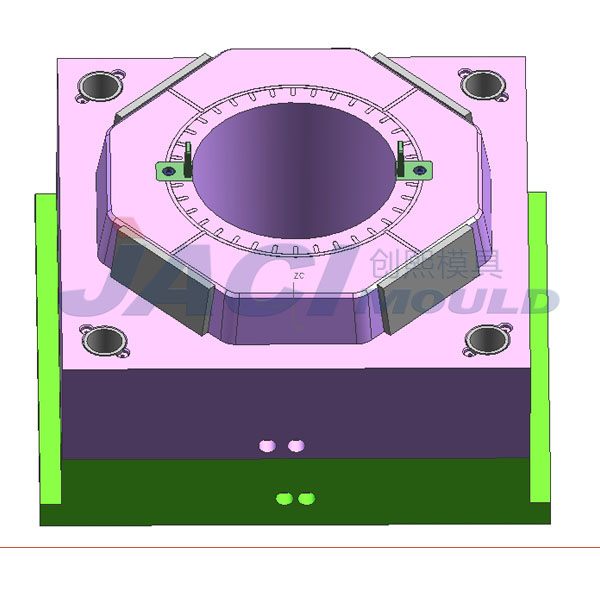

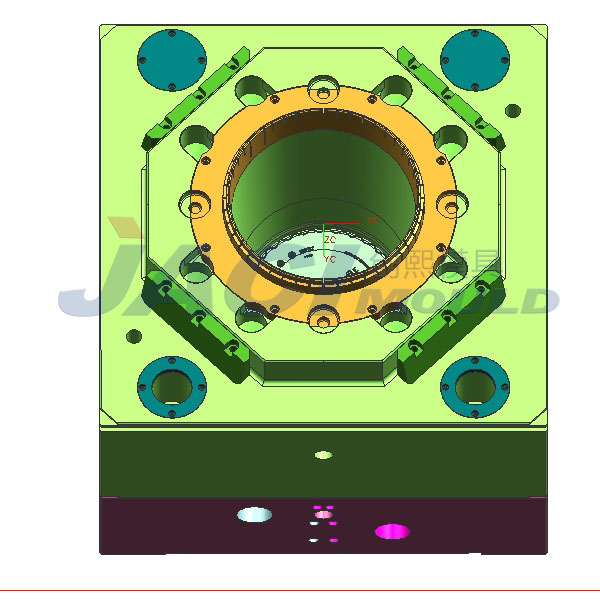

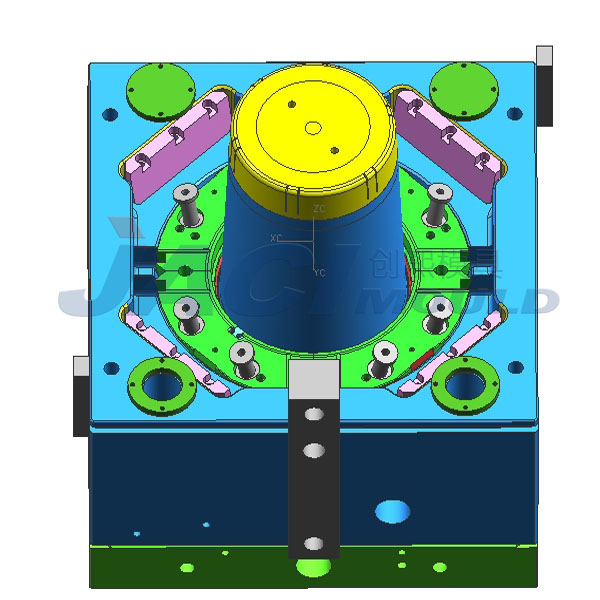

Paint bucket mould-Multi-cavity mould design and tooling ability
-fast&optimal cooling system design for high speed injection

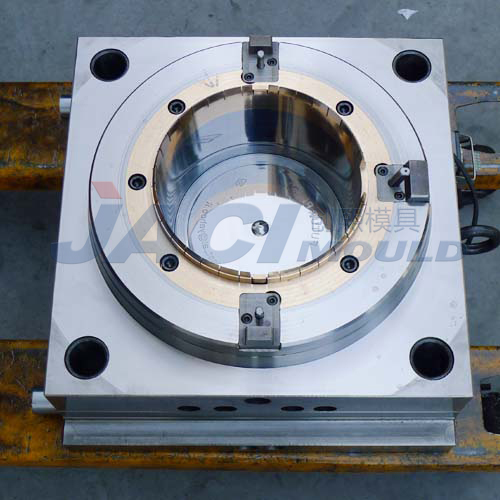

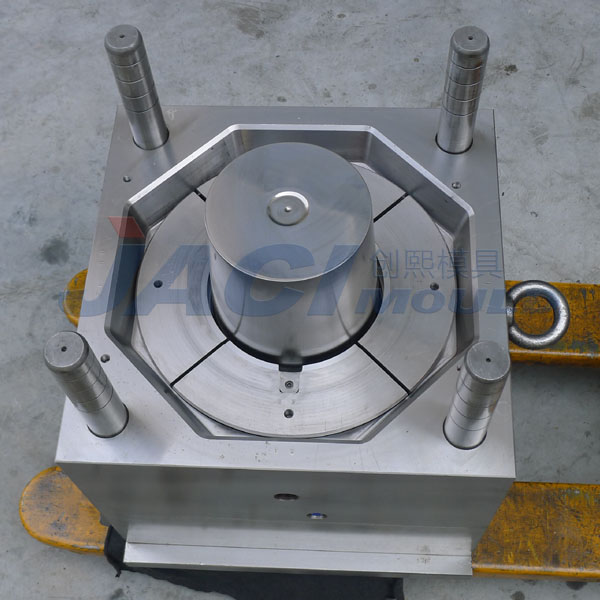

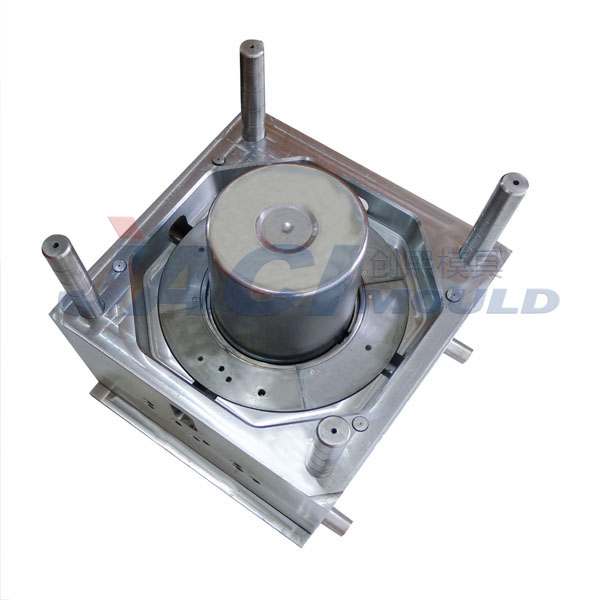

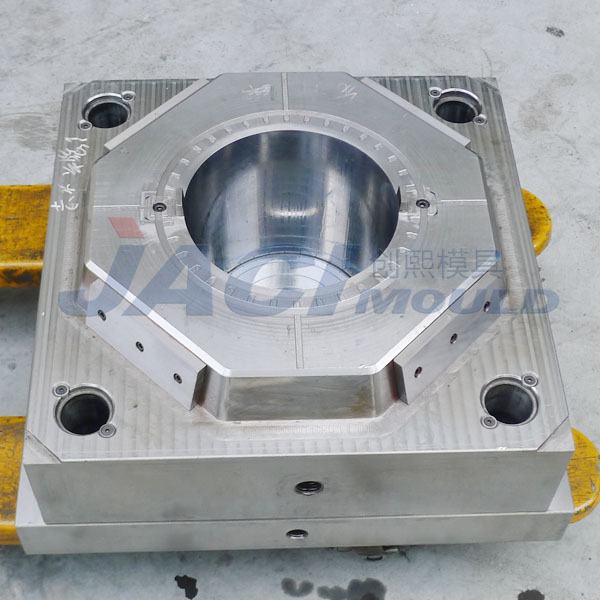

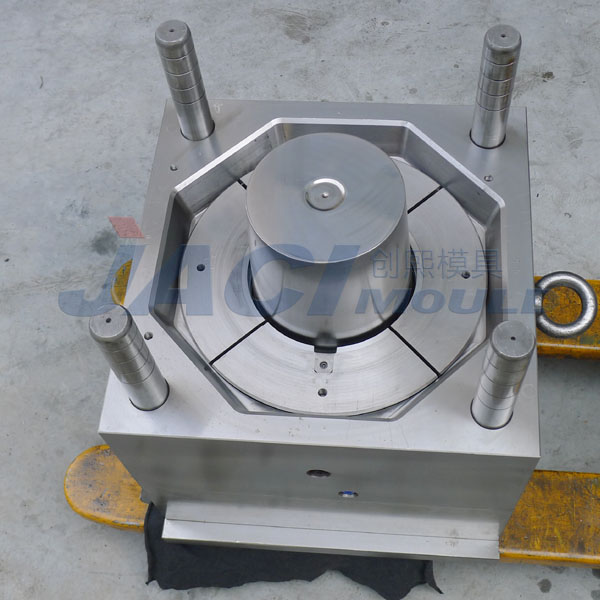

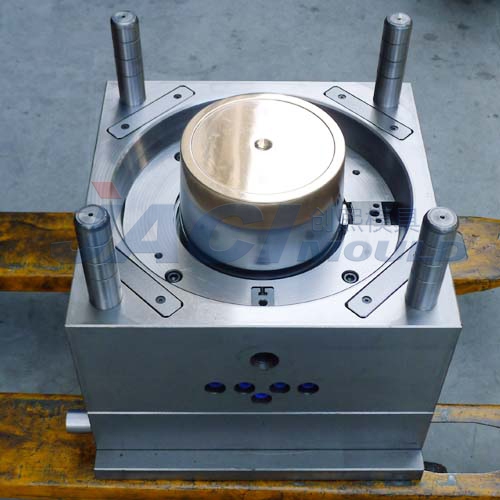

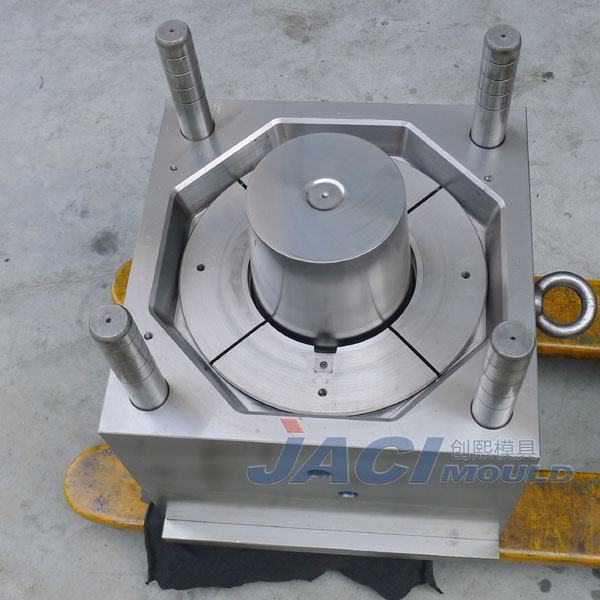

Product name:20Lpainting bucket mould Product description:Seal proof systen design Mould cavity:1cavity Mould size:620*620*680mm Suitable machine:500T haitian machine Mould material:DIN1.2738,core top using Coper Berylium Mould life:2M Runner system:1points YUDU hot runner ， point gate Ejection system:stripper plate Mould running:Full automaticity Mould features: The application of Copper Beryllium leads to best cooling effect Stroke switch controls ejection process precisely Oil and water integrator is more convenient for application and operation Copper guide bush, abrasion resistance and prolong the mould life Injection cycle time:22seconds(high speed injection machine) Delivery time:45days The country of mould'client:South Africa
