garbage bin mould

JACI MOULD is a professional Garbage bin mould manufacture in China,
-long time mould life,using the suitable steel for mould base and mould main steel.
-high speed injection,high standard garbage bin mould.

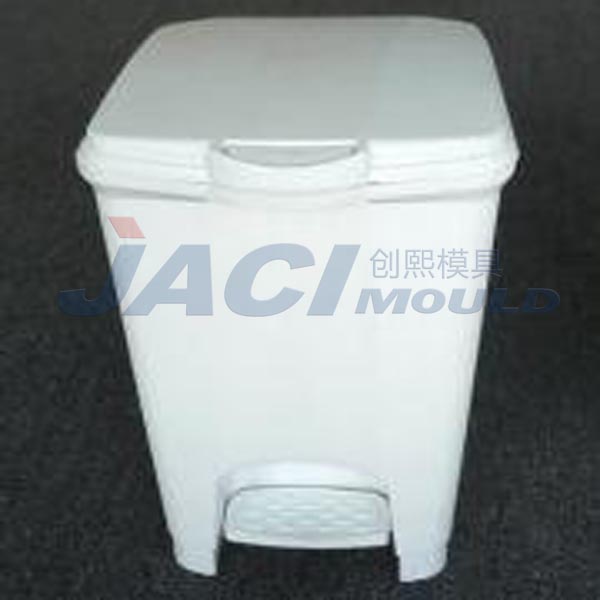

Product name:Garbage bin mould
Mould cavity:1cavity
Mould size:1150*1150*1580mm
Suitable machine:2000T Haitian machine
Mould material:DIN1.2311+Coper Berylium
Mould base:S50C Made in China
Mould life:1M
Runner system:1points moldmaster hot runner point gate
Ejection system:ejector block
Mould running: pick product with robot
Mould features:
The application of Copper Beryllium leads to best cooling effect
Stroke switch controls ejection process precisely
Oil and water integrator is more convenient for application and operation
Copper guide bush, abrasion resistance and prolong the mould life
Injection cycle time:65seconds
Delivery time:65days
the country of mould'client:italy
